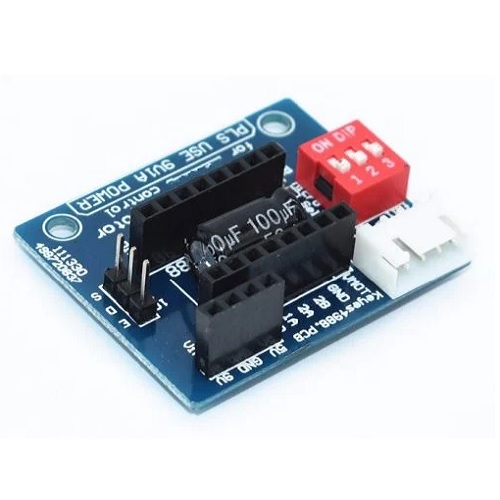

Modulo Socket Driver A4988


31 disponibles


– If jumper is hit the position of ON DP,that means 16 segment (4988) or 32 segment (8825)Jm connected motor
– Jv connect 5v and 12v-24v power supply
– Jc E, S, D, G, respectively corresponding to the connection of the Enable/Step/Dir/Gnd drive signal output
– Size: 43 x 34 x 10 mm
