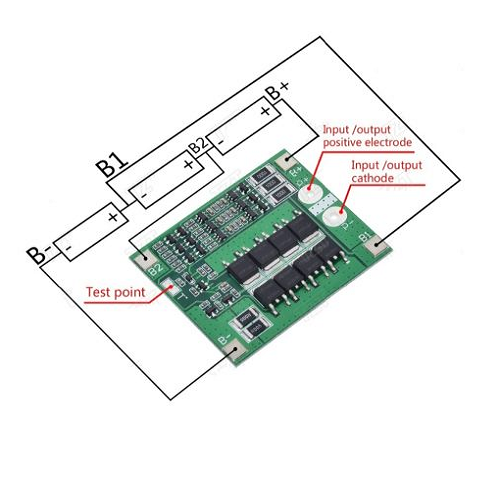

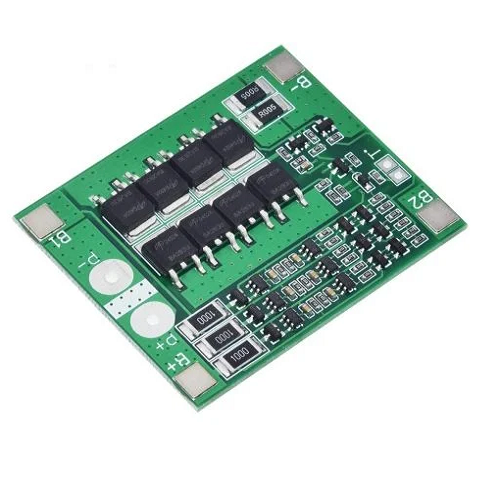

Cargador BMS Batería Li-ión Lipo 18650 3S 25A

$7,990

9 disponibles

Descripción

Características:

– Modelo: WX-3S2525LIA56
– 3 Celdas
– Charging voltage: 13.5v
– Balance voltage for single cell: 4.2v
– Balance current for single cell: 50mA
– Current consumption for single cell: < 9 microA – Maximal continuous charging current: 25A – Maximal continuous discharging current: 25A – Over charge detection voltage: 4.25v < +/- 0.025v – Over charge testing delay time: 1s – Over charge release voltage: 4.15v < +/- 0.05v – Over discharge detection voltage: 2.3v < +/- 0.1v – Over discharge delay time: 100ms – Over discharge release voltage: 3.0 < +/- 0.1v – Over current testing voltage: 200mv < +/- 25mv – Over current detection current: 35A < +/- 5A – Over current delay time: 10ms – Release condition: Automatic Recovery – Operating Temperature Range: -40 a +52 C° – Storage Temperature Range: -40 a +125 C°
